Shear wave splitting at BFO

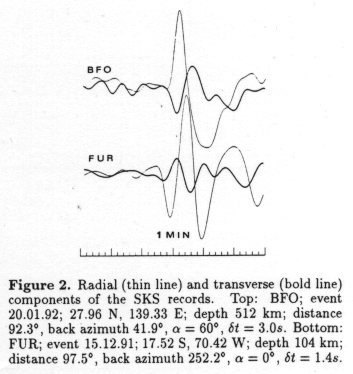

Figure 2 from Vinnik et.al. (1994) shows the radial (thin line) and
transverse (bold line) component of the SKS records for BFO and FUR.

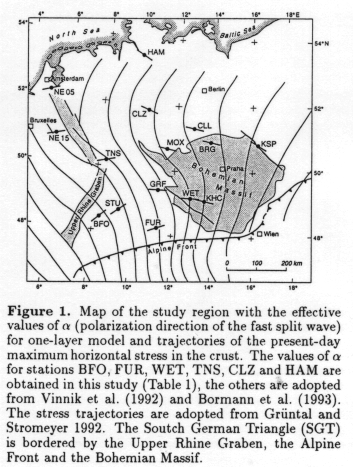

Figure 1 from Vinnik et.al. (1994) showing the polarization directions of
the fast split S wave at the stations of the GRSN.
