dump() [13/15]

void datrw::mseed::SEED::dump	(	Steim1Frame	f,
		std::ostream &	os
	)

Definition at line 328 of file seedstructdump.cc.

References datrw::mseed::SEED::Steim1Word::byte, datrw::mseed::SEED::SteimFrame::control(), datrw::mseed::SEED::SteimFrame::ctrl(), datrw::mseed::SEED::SteimFrame::Fbyte, datrw::mseed::SEED::SteimFrame::Ffw, datrw::mseed::SEED::SteimFrame::Fhw, datrw::mseed::SEED::SteimFrame::Fspecial, datrw::mseed::SEED::Steim1Word::fw, datrw::mseed::SEED::Steim1Word::hw, datrw::mseed::SEED::SteimFrame::nwords, and datrw::mseed::SEED::SteimFrame::word().

      {
        os << "Steim 1 Frame:" << std::endl;
        os << "  control word: 0x";
        std::ostream::fmtflags flags=os.flags();
        os.setf(std::ios_base::hex, std::ios_base::basefield);
        // os.setf(std::ios_base::showbase);
        os.width(8);
        os.fill('0');
        os << f.control();
        os.flags(flags);
        os << std::endl;
        /*
        for (int i=0; i<Steim1Frame::nelements; ++i)
        {
          os << "  ctrl #";
          os.width(2);
          os.fill('0');
          os << i << ": " << f.ctrl(i) << std::endl;
        }
        */
        os << "  data: " << std::endl;
        for (int i=0; i<Steim1Frame::nwords; ++i)
        {
          Steim1Word w;
          w.fw=f.word(i);
          switch (f.ctrl(i)) {
            case Steim1Frame::Fspecial:
              os << "  #";
              os.width(2);
              os.fill('0');
              os << i <<   " special (" << f.ctrl(i) << "):     "
                << w.fw << std::endl;
              break;
            case Steim1Frame::Fbyte:
              for (int j=0; j<4; ++j)
              {
                os << "  #";
                os.width(2);
                os.fill('0');
                os << i << " byte (" << f.ctrl(i) << ") #" << j << ":     "
                  << int(w.byte[j]) << std::endl;
              }
              break;
            case Steim1Frame::Fhw:
              for (int j=0; j<2; ++j)
              {
                os << "  #";
                os.width(2);
                os.fill('0');
                os << i << " halfword (" << f.ctrl(i) << ") #" << j << ": "
                  << w.hw[j] << std::endl;
              }
              break;
            case Steim1Frame::Ffw:
              os << "  #";
              os.width(2);
              os.fill('0');
              os << i <<   " fullword (" << f.ctrl(i) << "):   "
                << w.fw << std::endl;
              break;
          }
        }
      } // void dump(Steim1Frame f, std::ostream& os)

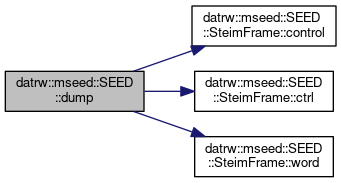

Here is the call graph for this function:
