aff::ConstCArray< T > Class Template Reference

Interface class to raw memory (C style array) More...

#include <Carray.h>

Inheritance diagram for aff::ConstCArray< T >:

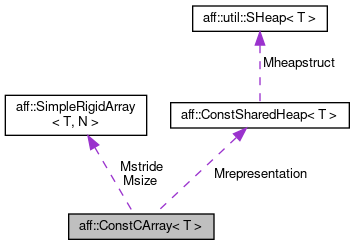

Collaboration diagram for aff::ConstCArray< T >:

Public Types
Various types
In particular due to our concept of const-correctness we need several typedefs to declare types derived from the element type of the array. See also Member typedefs Notes on the const-correctness of arrays
typedef ConstArray< T >	Tarray
	Type of array to be interfaced. More...
typedef Tarray::Trepresentation	Trepresentation
	Type of representation. More...
typedef Tarray::Tshape	Tshape
	Type of shape. More...
typedef Tshape::TSizeVec	TSizeVec
	we use this for one of the access operators More...
typedef Tarray::Tvalue	Tvalue
	Element type. More...
typedef Tarray::Tpointer	Tpointer
	Type of pointer to element. More...
typedef Tarray::Treference	Treference
	Type of reference to element. More...
typedef Tarray::Tconst_value	Tconst_value
	const element type More...
typedef Tarray::Tconst_pointer	Tconst_pointer
	Type of pointer to const element. More...
typedef Tarray::Tconst_reference	Tconst_reference
	Type of reference to const element. More...
typedef ConstCArray< T >	Tcontainer
	Type of this array. More...
typedef Tcontainer	Tcontainer_of_const
	Type of the array of const values. More...
typedef Tcontainer	Tcoc
	Short for Tcontainer_of_const. More...

Public Member Functions
Constructors
No copy constructors or copy operators are provided since this is provided as an interface class only.
	ConstCArray (const Tarray &array)
	construct from shape and representation More...
Shape access
const Tsize &	size (const Tsubscript &i) const
	size of dimension More...
const Tsize &	stride (const Tsubscript &i) const
	stride of dimension More...
const TSizeVec &	size () const
	size of dimensions More...
const TSizeVec &	stride () const
	strides of dimensions More...
Memory access
Tconst_pointer	pointer () const
	return pointer to first element in Fortran layout More...
template<class TT >
TT *	castedpointer () const
	return type-casted pointer to first element in Fortran layout More...

Protected Member Functions
const TSizeVec::Tvalue &	offset () const
	pass offset to derived class More...

Private Attributes
Trepresentation	Mrepresentation
	representation member More...
TSizeVec	Msize
	sizes of dimensions More...
TSizeVec	Mstride
	strides of dimensions More...
TSizeVec::Tvalue	Moffset
	offset to first index More...

Detailed Description

template<class T>
class aff::ConstCArray< T >

Interface class to raw memory (C style array)

This class together with aff::CArray is provided as an interface for users which have to provide the contents of an array through raw memory pointers in C style. Both classes take an aff::ConstArray or aff::Array instance respectively as an argument for their constructor. They provide a pointer to raw memory through their member functions pointer() and castedpointer(). If a pointer p to the raw memeory behind array is defined by

aff::Array<T> array;
aff::CArray<T> carray(array);
T* p=carray.pointer();

then the array element array(i0,i1,i2,i3) is addressed by

p[i0*s0+i1*s1+i2*s2+i3*s3]

where the index value ranges are

• i0=0,1,... n0-1
• i1=0,1,... n1-1
• i2=0,1,... n2-1
• i3=0,1,... n3-1

and

• n0=carray.size(0)
• n1=carray.size(1)
• n2=carray.size(2)
• n3=carray.size(3)

and

• s0=carray.stride(0)
• s1=carray.stride(1)
• s2=carray.stride(2)
• s3=carray.stride(3)

Note

The pointers passed by the access functions of this class are (certainly) not reference counted. Make sure to keep an instance of one of the arrays maintining the underlying memory allocation as long as these pointers are in use.

See also

helpertest.cc

Definition at line 93 of file Carray.h.

---

The documentation for this class was generated from the following file:

• Carray.h
