class to read mini-SEED data More...

#include <mseed.h>

Inheritance diagram for datrw::imseedstream:

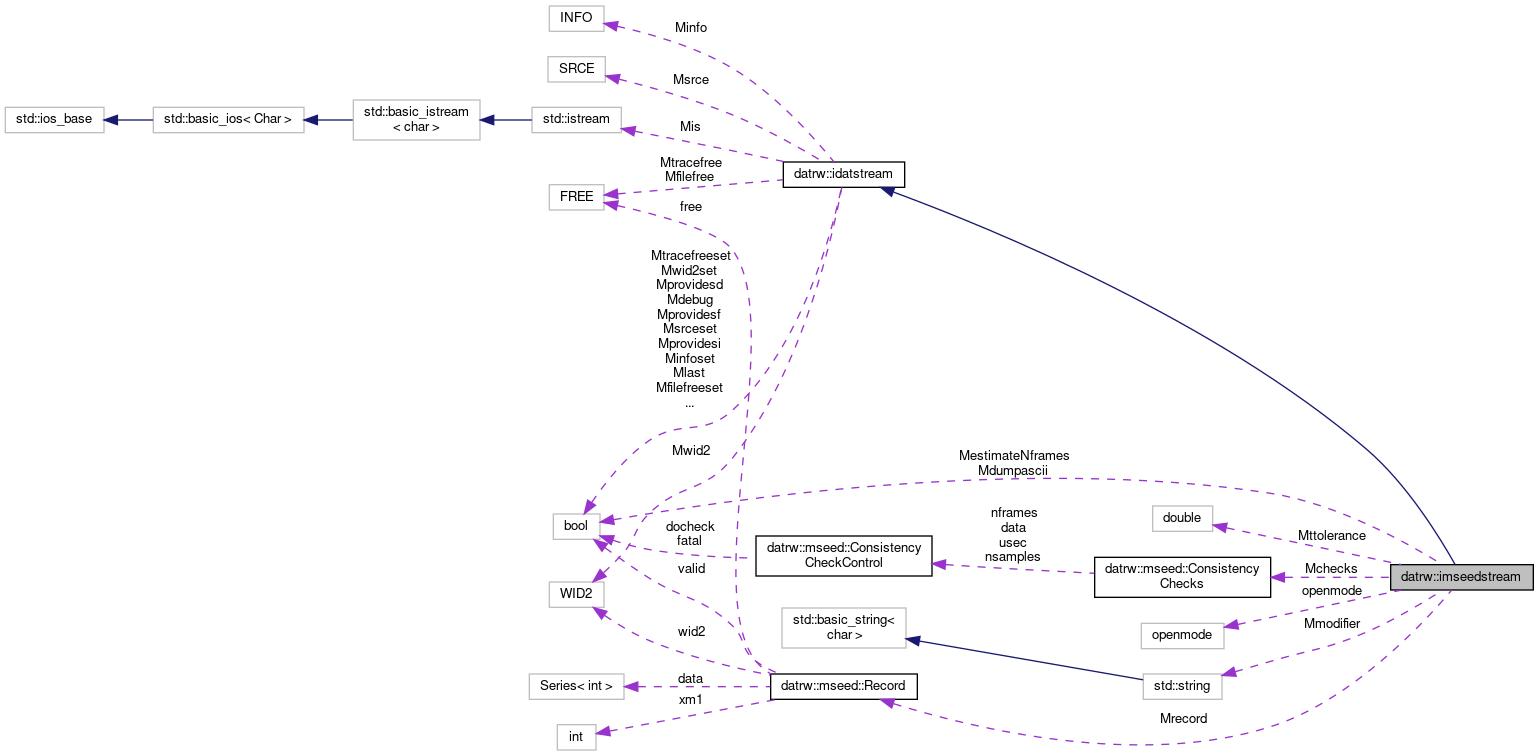

Collaboration diagram for datrw::imseedstream:

[legend]

Public Types
typedef idatstream	Tbase

Public Member Functions
	imseedstream (std::istream &is, const std::string &modifier="", const bool &debug=false)

virtual	~imseedstream ()

bool	debug ()
	indicate debug mode More...

void	debug (const bool &debug)
	set debug mode More...

virtual Tdseries	dseries ()

sff::FREE	free () const

virtual Tfseries	fseries ()

bool	good () const

bool	hasfree () const

bool	hasinfo () const

bool	hassrce () const

sff::INFO	info () const

virtual Tiseries	iseries ()

bool	last () const

Properties	properties () const

bool	providesd () const

bool	providesf () const

bool	providesi () const

virtual void	skipseries ()

sff::SRCE	srce () const

sff::WID2	wid2 () const

Static Public Member Functions
static void	help (std::ostream &os=std::cout, const char *name="idatsream")
	print some info about data conversion. More...

static void	help (std::ostream &os=std::cout)

Static Public Attributes
static const std::ios_base::openmode	openmode =std::ios_base::in\|std::ios_base::binary

Protected Member Functions
void	newtrace ()

void	setfilefree (const sff::FREE &free)

void	setinfo (const sff::INFO &info)

void	setlast ()

void	setsrce (const sff::SRCE &srce)

void	settracefree (const sff::FREE &free)

void	setwid2 (const sff::WID2 &wid2)

Protected Attributes
bool	Mdebug

std::istream &	Mis

Private Member Functions
Tiseries	read (const bool &skipdata=false)
	read file More...

Private Attributes
datrw::mseed::ConsistencyChecks	Mchecks

bool	Mdumpascii
	dump ASCII data if true More...

bool	MestimateNframes
	estimate frame count flags controlling consistency checks More...

std::string	Mmodifier
	format modifier More...

datrw::mseed::Record	Mrecord
	data read ahead More...

double	Mttolerance
	timing tolerance in microseconds More...

Detailed Description

class to read mini-SEED data

We must always be one record in advance. Data reading will be done by concatenating several MiniSEED records. A time series will be terminated after reading a noncontiguous MiniSEED record. We have to store this record after reading and thus must always be one record ahead.

Data read ahead is stored in imseedstream::Mrecord which is of type mseed::Record.

Definition at line 163 of file mseed.h.

The documentation for this class was generated from the following files:
