sffxx.h File Reference
SFF library (prototypes) More...
#include <string>#include <cmath>#include <list>#include <iostream>#include <sstream>#include <libtime++.h>#include <aff/iterator.h>#include <gsexx.h>

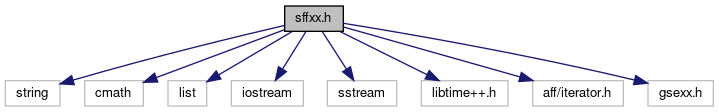

Include dependency graph for sffxx.h:

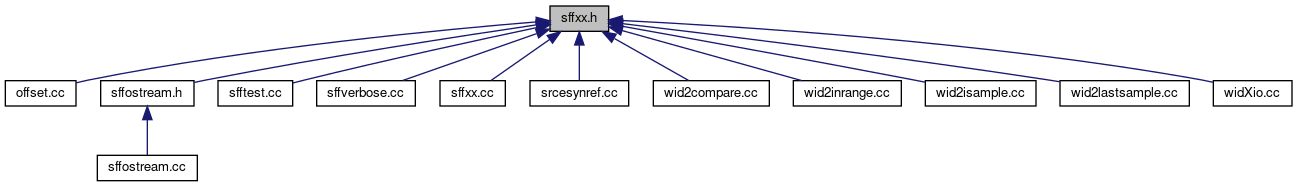

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| class | sff::Terror |
| struct | sff::STAT |
| struct | sff::FREE |
| struct | sff::SRCE |
| struct | sff::DAST |
| struct | sff::INFO |
| struct | sff::WID2 |
| Waveform Header. More... | |
| class | sff::FileHeader |
| SFF file header elements. More... | |
| class | sff::WaveformNormalizer |
| class to normalize waveforms More... | |
| class | sff::TraceHeader |
| SFF trace header elements. More... | |
| class | sff::OutputWaveform< C > |
| class | sff::InputWaveform< C > |
| class | sff::SkipWaveform |
| class | sff::WID2compare |
| compares selected fields from two WID2 objects More... | |
Namespaces | |
| sff | |
| all SFF modules | |
Macros | |
| #define | TF_SFFXX_H_VERSION "TF_SFFXX_H V1.10" |
| #define | SFF_assert(C, M) |
| check condition More... | |
| #define | SFF_abort(M) |
| abort by throwing an exception More... | |
Enumerations | |
| enum | sff::Ecoosys { sff::CS_cartesian, sff::CS_spherical } |
| valid coordinate systems More... | |
| enum | sff::Enormmode { sff::NM_one, sff::NM_maxdyn, sff::NM_ifneeded } |
| enum | sff::Ewid2field { sff::Fdate =1<<0, sff::Fstation =1<<1, sff::Fchannel =1<<2, sff::Fauxid =1<<3, sff::Fnsamples =1<<4, sff::Fdt =1<<5, sff::Fcalib =1<<6, sff::Fcalper =1<<7, sff::Finstype =1<<8, sff::Fhang =1<<9, sff::Fvang =1<<10 } |
| bit values to select WID2 fields to be compared More... | |
Functions | |
| char | sff::coosysID (const Ecoosys &csid) |
| Ecoosys | sff::coosysID (const char &csid) |
| std::istream & | sff::operator>> (std::istream &is, FileHeader &fh) |
| template<class C > | |
| std::istream & | sff::operator>> (std::istream &is, InputWaveform< C > &wf) |
| std::istream & | sff::operator>> (std::istream &is, SkipWaveform &swf) |
| std::ostream & | sff::operator<< (std::ostream &os, const FileHeader &fh) |
| std::ostream & | sff::operator<< (std::ostream &os, const TraceHeader &th) |
| template<class C > | |
| std::ostream & | sff::operator<< (std::ostream &os, const OutputWaveform< C > &wf) |
| libtime::TAbsoluteTime | sff::wid2lastsample (const WID2 &wid2) |
| return time of last sample in waveform More... | |
| libtime::TAbsoluteTime | sff::wid2nextdate (const WID2 &wid2) |
| return time of next first sample for contiguous data More... | |
| long int | sff::wid2isample (const WID2 &wid2, const libtime::TAbsoluteTime &idate) |
| return index for sample at given date More... | |
| libtime::TAbsoluteTime | sff::wid2isample (const WID2 &wid2, const long int &i) |
| return time for sample at given index More... | |
| libtime::TRelativeTime | sff::wid2isamplerest (const WID2 &wid2, const libtime::TAbsoluteTime &idate) |
| return time interval between idate and sample sample next to idate More... | |
| std::string | sff::srce_reference_ID () |
| return ID string for synthtic time reference More... | |
| sff::SRCE | sff::srce_reference () |
| return synthetic time reference from nothing More... | |
| double | sff::offset (const SRCE &srce, const INFO &info, const double &radius) |
| return offset in meters More... | |
| double | sff::sourcedistance (const SRCE &srce, const INFO &info) |
| return spatial distance between source and receiver in meters More... | |
| double | sff::offsetdeg (const SRCE &srce, const INFO &info, const double &radius) |
| return offset in degrees More... | |
| std::string | sff::WIDXline (const sff::WID2 &wid2, const bool &debug=false) |
| write WID2 information in extended format More... | |
| sff::WID2 | sff::WIDXline (const std::string &line) |
| read WID2 information with extended format More... | |
| void | sff::verbose (std::ostream &os, const WID2 &wid2) |
| void | sff::verbose (std::ostream &os, const SRCE &srce) |
| void | sff::verbose (std::ostream &os, const DAST &dast) |
| void | sff::verbose (std::ostream &os, const INFO &info) |
| void | sff::verbose (std::ostream &os, const FREE &free) |
| void | sff::verbose (std::ostream &os, const STAT &stat) |
| void | sff::verbose (std::ostream &os, const FileHeader &fh) |
| void | sff::verbose (std::ostream &os, const TraceHeader &th) |
Variables | |
| const char *const | sff::WIDXID = "WIDX" |
| ID for extended WID2 format. More... | |
Detailed Description
SFF library (prototypes)
- Date
- 21/12/2003
SFF library (prototypes)
libsffxx is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software
Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA 02110-1301 USA
Copyright (c) 2003 by Thomas Forbriger (BFO Schiltach)
REVISIONS and CHANGES
- 21/12/2003 V1.0 Thomas Forbriger
- 23/12/2003 V1.1
- first version writing SFF successfully
- starting with reading code
- 11/01/2004 V1.2
- FileHeader modification functions- TraceHeader modification functions
- 23/12/2004 V1.3 added full block append to FREE
- 27/03/2006 V1.4 introduced sff::STAT::decode_libversion
- 27/06/2006 V1.5 added INFO comparison
- 02/03/2007 V1.6 added offset calculation
- 26/06/2007 V1.7 added verbose output
- 13/04/2010 V1.8
- start implementing WIDX- provide error handling macros
- 03/05/2010 V1.9 provide debug output for WIDX compilation
- 29/07/2013 V1.10 added function sourcedistance
Definition in file sffxx.h.
